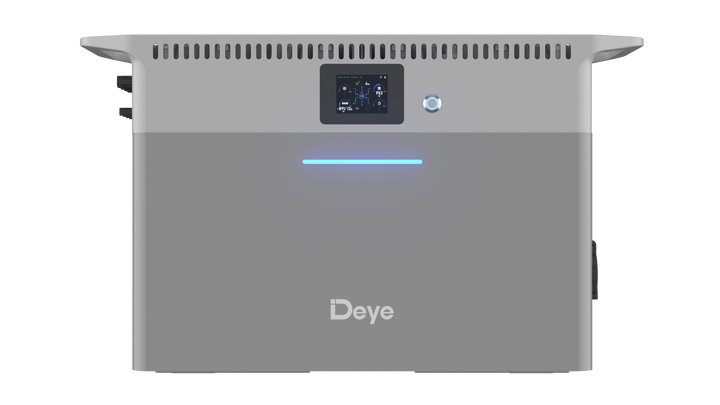

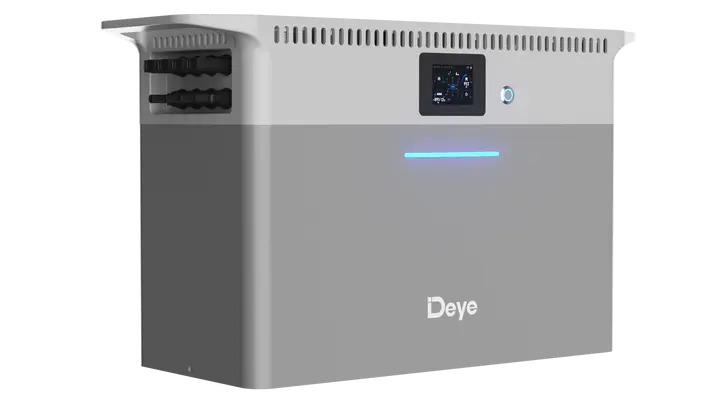

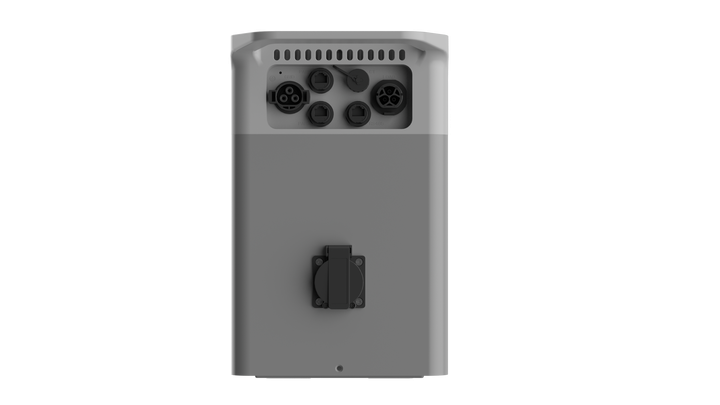

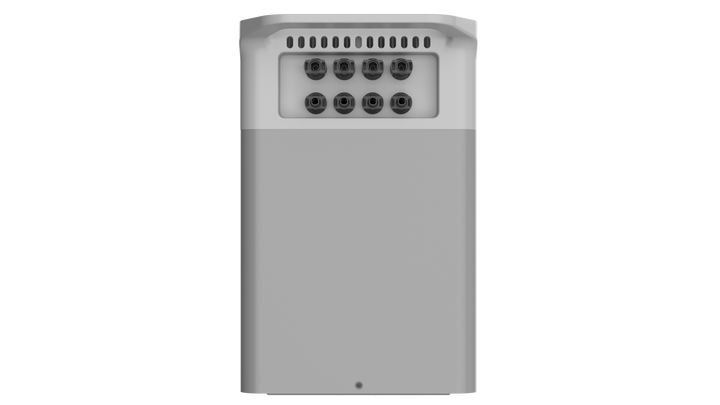

Deye SUN-BK(80-250)-2.56KWH-EU-AM4-18L/32L

Deye SUN-BK(80-250)-2.56KWH-EU-AM4-18L/32L

Suitable for on-grid, off-grid, and portable use

In stock / on orderPrice on request

Deye SUN-BK(80-250)-2.56KWH-EU-AM4-18L/32L — Suitable for on-grid, off-grid, and portable use. Original equipment with factory warranty from the official Deye distributor in Belarus. Delivery across Belarus and Russia.

Request Price

By clicking the button you agree to personal data processing

Documentation

PDFDatasheetDatasheet · 1.7 МБDownload ↓PDFManual 1User Manual · 11.1 МБDownload ↓

Technical Specifications

ModelSUN-BK80-2.56KWH-EU-AM4-18LSUN-BK160-2.56KWH-EU-AM4-18LSUN-BK200-2.56KWH-EU-AM4-18LSUN-BK250-2.56KWH-EU-AM4-18L
AC Technical Specification
Rated AC Input / Output Active Power800W1600W2000W2500W
Max. AC Input / Output Active Power880W1760W2200W2750W
Max. off grid power2500W
AC Input / Output Frequency and Voltage50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Rated Grid Input / Output Current3.7A / 3.5A7.3A / 7.0A9.1A / 8.7A11.4A / 10.9A
Max.Grid Input / Output Current4A / 3.9A8.0A / 7.7A10.0A / 9.6A12.5A / 12A
Peak Power ( off-grid )2 time of rated power, 10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)30A
DC Injection Current<0.5%In
PV String Input Data
Max. PV Access Power4400W
Max. Operating PV Input Current18A+18A+18A+18A
Max. Input Short-Circuit Current32A+32A+32A+32A
Rated PV Input Voltage42.5V
Start-up Voltage25Vdc
MPPT Voltage Range20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker4/1+1+1+1
Efficiency
Max. Efficiency96.5%
Euro Efficiency96.0%
MPPT Efficiency>99%
Equipment Protection
IntegratedDC reverse polarity protection , Thermal Protection , AC Output Overcurrent Protection , Insulation Impedance detection , AC Output Overvoltage Protection , Anti-islanding protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , AC Output Overvoltage Protection
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Battery Input Data
Battery TypeLiFePO4
Max.Charging/Discharging Current50A
Battery Nominal Energy2560Wh
Battery Voltage Range44.8-57.6 V
Charging Strategy for Li-ion BatterySelf-adaption to BMS
General Data
Max. Inverter Parallel NO.3 pcs (up to 7.5 kW rated output)
Communication InterfacesWi-Fi, Bluetooth, LoRa
Dimension ( W × D × H )560 × 330 × 210mm
Weight (kg)30kg
Operating Temperature Range-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude2000m
Permissible Ambient Humidity0% ~ 95% ( No Condensing )
Ingress Protection(IP) RatingIP65
Safety EMC / StandardIEC 62619,UN38.3,IEC/EN62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Grid RegulationVDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Warranty10 years
ModelAE-F2.56
Battery Technical Specification
Battery ChemistryLiFePO4
Battery Nominal Voltage51.2V
Battery Nominal Energy2560Wh
Max. Charging / Discharging Current50A
Battery Operating Voltage44.8V-57.6V
Battery Cycle Life≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL )
Max. Stack NO.5 pcs (up to 12.8kWh )
Parallel Capability40 pcs
Other Technical Specification
DisplayLED ( SOC, Alarm )
Communication InterfacesLoRa
Dimension ( W × D × H )450 × 210 × 244mm
Ingress Protection(IP) RatingIP 65
Weight Approximate ( kg )22±3kg
Operating Temperature Range-10°C~55°C ( -20℃~55℃ with heating, optional)
Max. Operating Altitude2000m
Relative Humidity0% ~ 95% ( No Condensing )
CertificationUN38.3, IEC 62619, CE
Installation StyleFloor-Mounted,Stacked-Mounted
Warranty10 years
ModelSUN-BK80-2.56KWH-EU-AM4-32LSUN-BK160-2.56KWH-EU-AM4-32LSUN-BK200-2.56KWH-EU-AM4-32LSUN-BK250-2.56KWH-EU-AM4-32L
AC Technical Specification
Rated AC Input / Output Active Power800W1600W2000W2500W
Max. AC Input / Output Active Power880W1760W2200W2750W
Max. off grid power2250W
AC Input / Output Frequency and Voltage50Hz ( 45Hz ~ 55Hz ) , 60Hz ( 55Hz ~ 65Hz ) , L+N +PE , 220 / 230 Vac
Rated Grid Input / Output Current3.7A / 3.5A7.3A / 7.0A9.1A / 8.7A11.4A / 10.9A
Max.Grid Input / Output Current4A / 3.9A8.0A / 7.7A10.0A / 9.6A12.5A / 12A
Peak Power ( off-grid )2 time of rated power, 10s
Power Factor Adjustment Range0.8 leading to 0.8 lagging
Max. Continuous AC Passthrough (grid to load)30A
DC Injection Current<0.5%In
PV String Input Data
Max. PV Access Power5760W
Max. Operating PV Input Current32+32+32+32
Max. Input Short-Circuit Current48+48+48+48
Rated PV Input Voltage42.5V
Start-up Voltage25Vdc
MPPT Voltage Range20 ~ 55V
No. of MPP Trackers/No. of Strings MPP Tracker4/1+1+1+1
Efficiency
Max. Efficiency96.5%
Euro Efficiency96.0%
MPPT Efficiency>99%
Equipment Protection
IntegratedDC reverse polarity protection , Thermal Protection , AC Output Overcurrent Protection , Insulation Impedance detection , AC Output Overvoltage Protection , Anti-islanding protection , AC Output Short Circuit Protection Thermal Protection , Insulation Impedance detection , AC Output Overvoltage Protection
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Battery Technical Specification
Battery TypeLiFePO4
Battery Voltage Range(V)44.8-57.6
Battery Nominal Energy2560Wh
Max.Charging/Discharging Current50V
Charging Strategy for Li-ion BatterySelf-adaption to BMS
General Data
Max. Inverter Parallel NO.3 pcs (up to 7.5 kW rated output)
Communication InterfacesWi-Fi, Bluetooth, LoRa
Dimension ( W × D × H )560 × 330 × 210mm
Weight (kg)30kg
Operating Temperature Range-10°C ~ 55°C, >45℃ Derating,( -20℃~55℃ with heating, optional)
Permissible Altitude2000m
Permissible Ambient Humidity0% ~ 95% ( No Condensing )
Ingress Protection(IP) RatingIP65
Safety EMC / StandardIEC 62619,UN38.3,IEC/EN62109-1 IEC/EN 62109-2, IEC/EN 61000-6-1/2/3/4
Grid RegulationVDE 4105,IEC61727/62116,VDE0126,AS4777.2,CEI0-21,EN50549-1,G98,C10-11,UNE217002
Warranty10 years
ModelAE-F2.56
Battery Technical Specification
Battery ChemistryLiFePO4
Battery Nominal Voltage51.2V
Battery Nominal Energy2560Wh
Max. Charging / Discharging Current50A
Battery Operating Voltage44.8V-57.6V
Battery Cycle Life≥6000 ( @25°C±2°C, 0.5C / 0.5C, 70%EOL )
Max. Stack NO.5 pcs (up to 12.8kWh )
Parallel Capability40 pcs
Other Technical Specification
DisplayLED ( SOC, Alarm )
Communication InterfacesLoRa
Dimension ( W × D × H )450 × 210 × 244mm
Ingress Protection(IP) RatingIP 65
Weight Approximate ( kg )22±3kg
Operating Temperature Range-10°C~55°C ( -20℃~55℃ with heating, optional)
Max. Operating Altitude2000m
Relative Humidity0% ~ 95% ( No Condensing )
CertificationUN38.3, IEC 62619, CE
Installation StyleFloor-Mounted,Stacked-Mounted
Warranty10 years
