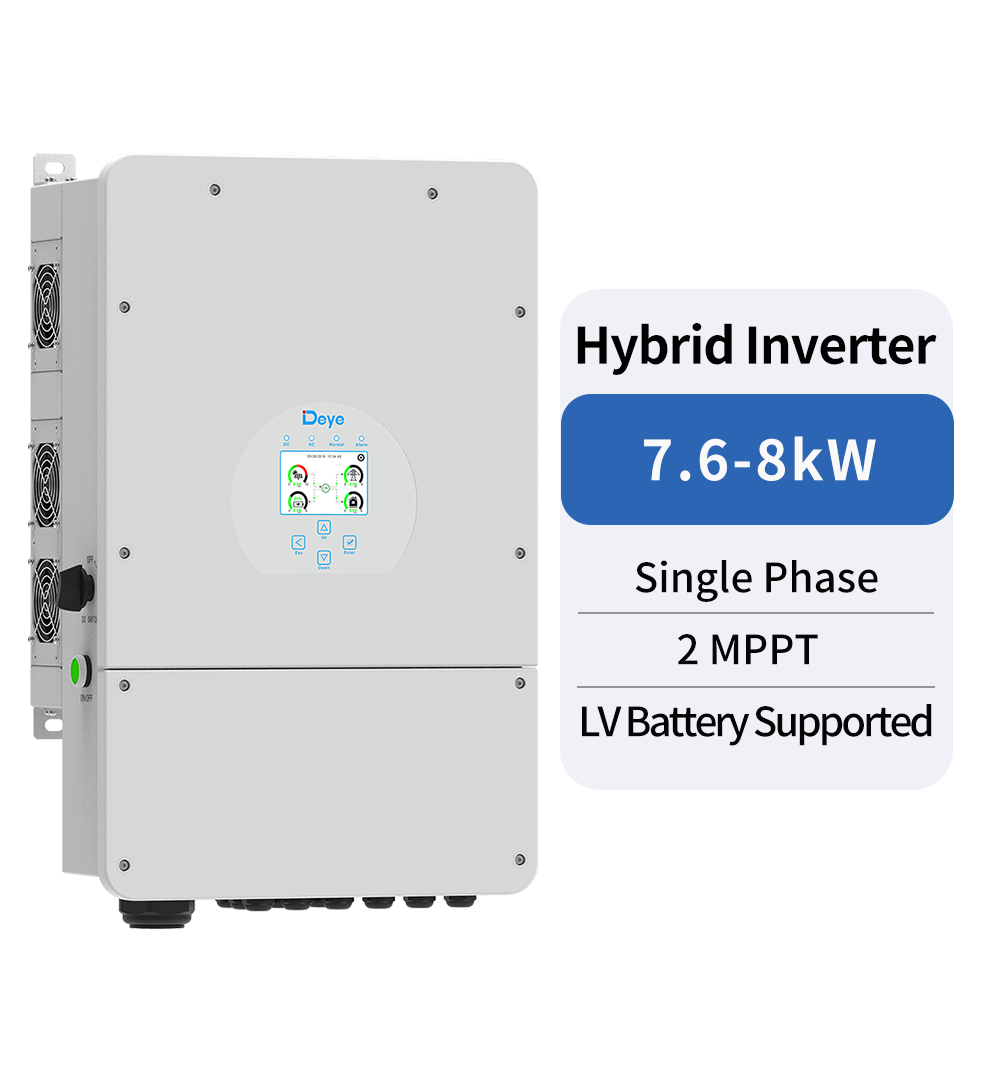

Deye SUN-7.6/8K-SG01LP1-EU

Single Phase Hybrid Inverter | 7.6-8kW | 2 MPPT | LV Battery Supported

In stock / on orderPrice on request

Colorful touch LCD, IP65 protection degree
6 time periods for battery charging/discharging
Max. charging/discharging current of 190A
AC couple to retrofit existing solar system
Support storing energy from diesel generator
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Deye SUN-7.6/8K-SG01LP1-EU — Single Phase Hybrid Inverter | 7.6-8kW | 2 MPPT | LV Battery Supported. Original equipment with factory warranty from the official Deye distributor in Belarus. Delivery across Belarus and Russia.

Request Price

Documentation

PDFDatasheetDatasheet · 205 КБDownload ↓PDFManual 1User Manual · 7.7 МБDownload ↓

Technical Specifications

Model	SUN-7.6K-SG01LP1-EU	SUN-8K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging/Discharging Current(A)	190	190
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	15200	16000
Max. PV Input Power (W)	9880	10400
Max. PV Input Voltage (V	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current（A）	22+22
Max. Input Short-Circuit Current（A）	28+28
No.of MPP Trackers/No.of String Per MPP Tracker	2/2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	7600	8000
Max. AC Input/Output Apparent Power （VA）	8360	8800
Rated AC Input/Output Current（A）	34.5/33	36.4/34.8
Max. AC Input/Output Current（A）	38/36.3	40/38.3
Max. Continuous AC Passthrough (grid to load)（A）	50
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated Input/Output Voltage/Range(V)	220/230V 0.85Un-1.1Un
Grid Connection Form	L+N+PE
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	＞99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
LCD/LED Display	LCD
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise(dB)	＜30
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated (solar), Isolated (battery)
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size（WHD）[mm]	420×670×233（Excluding Connectors and Brackets）
Weight[kg]	30
Warranty	5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
