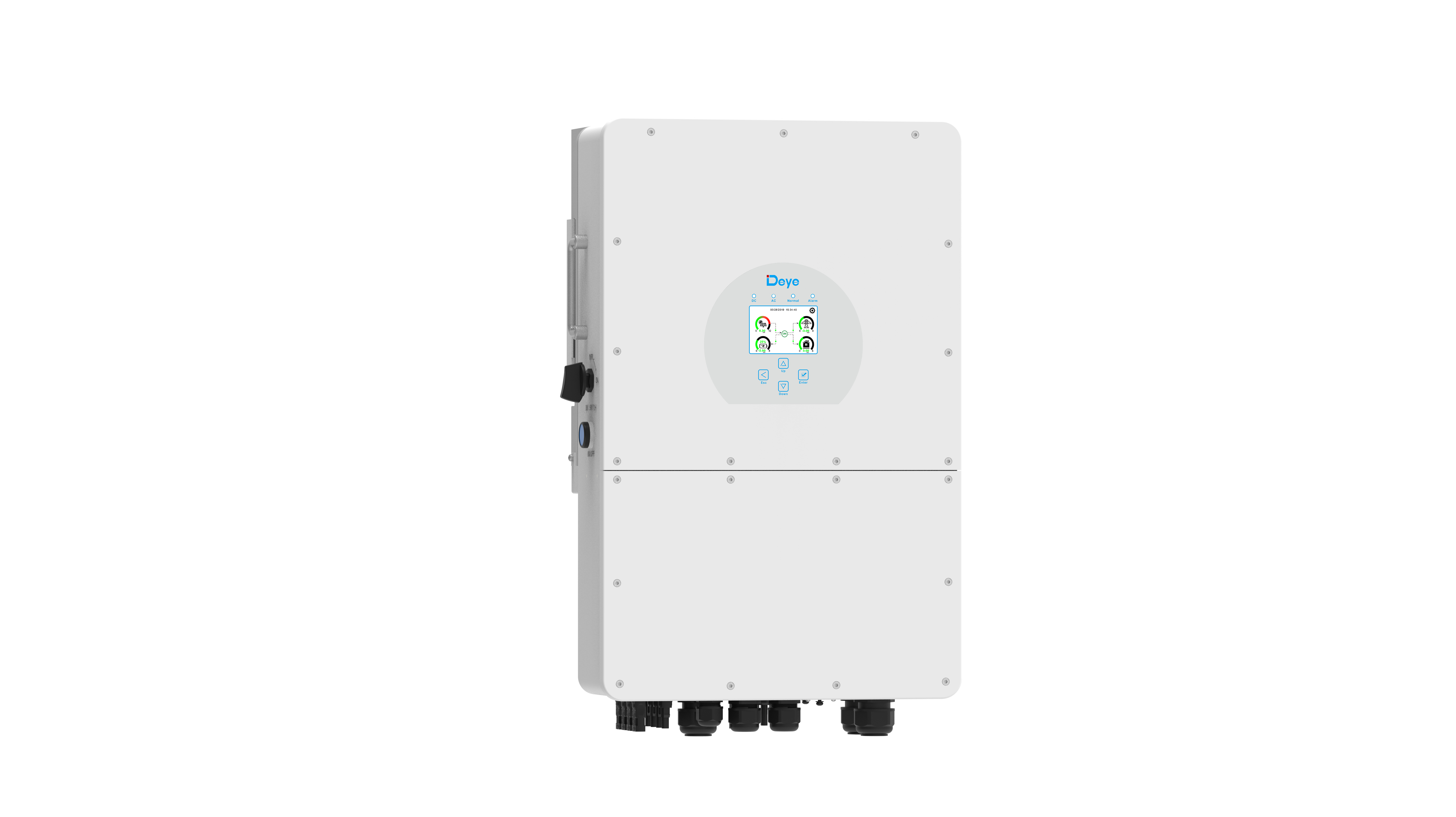

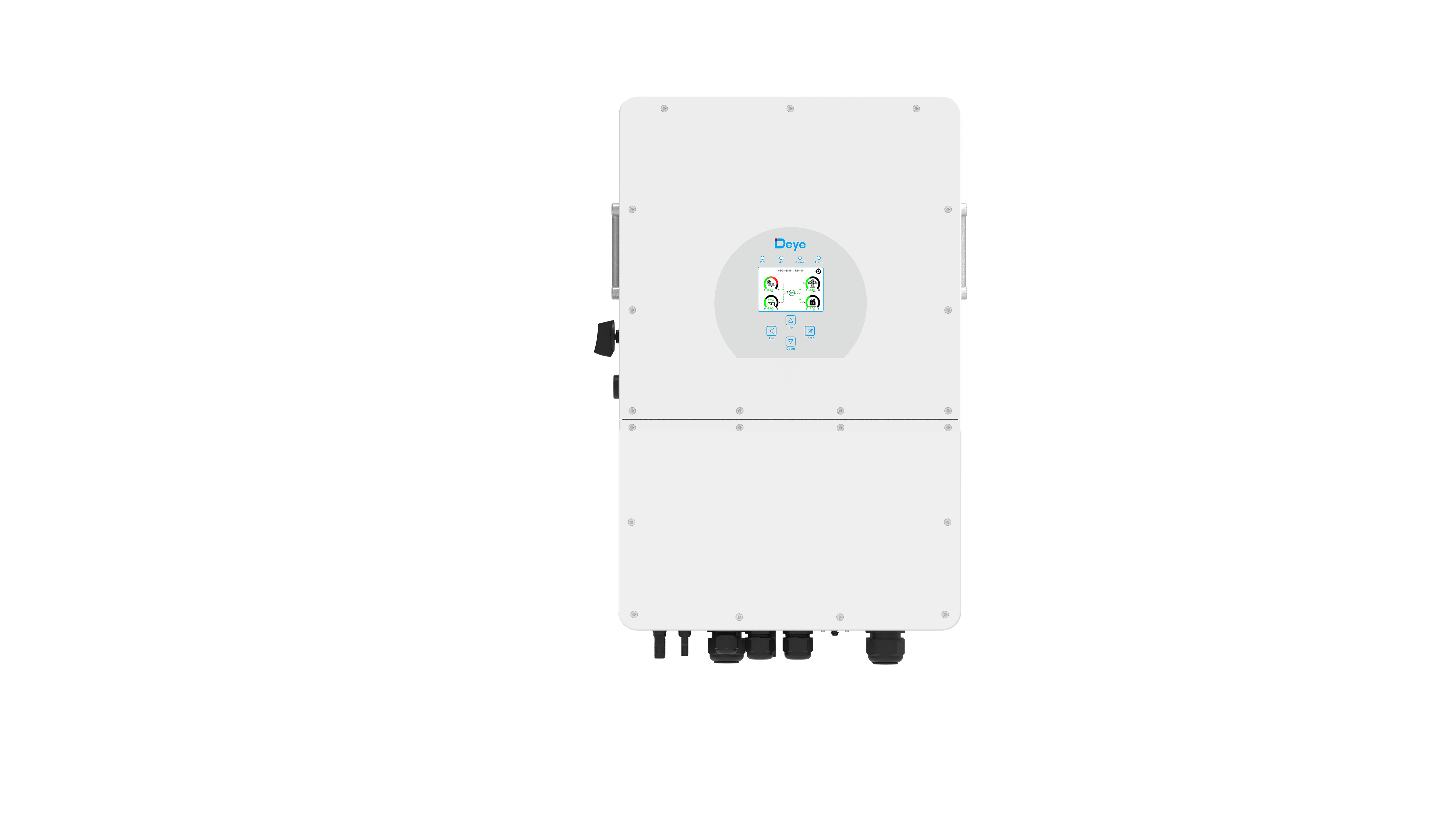

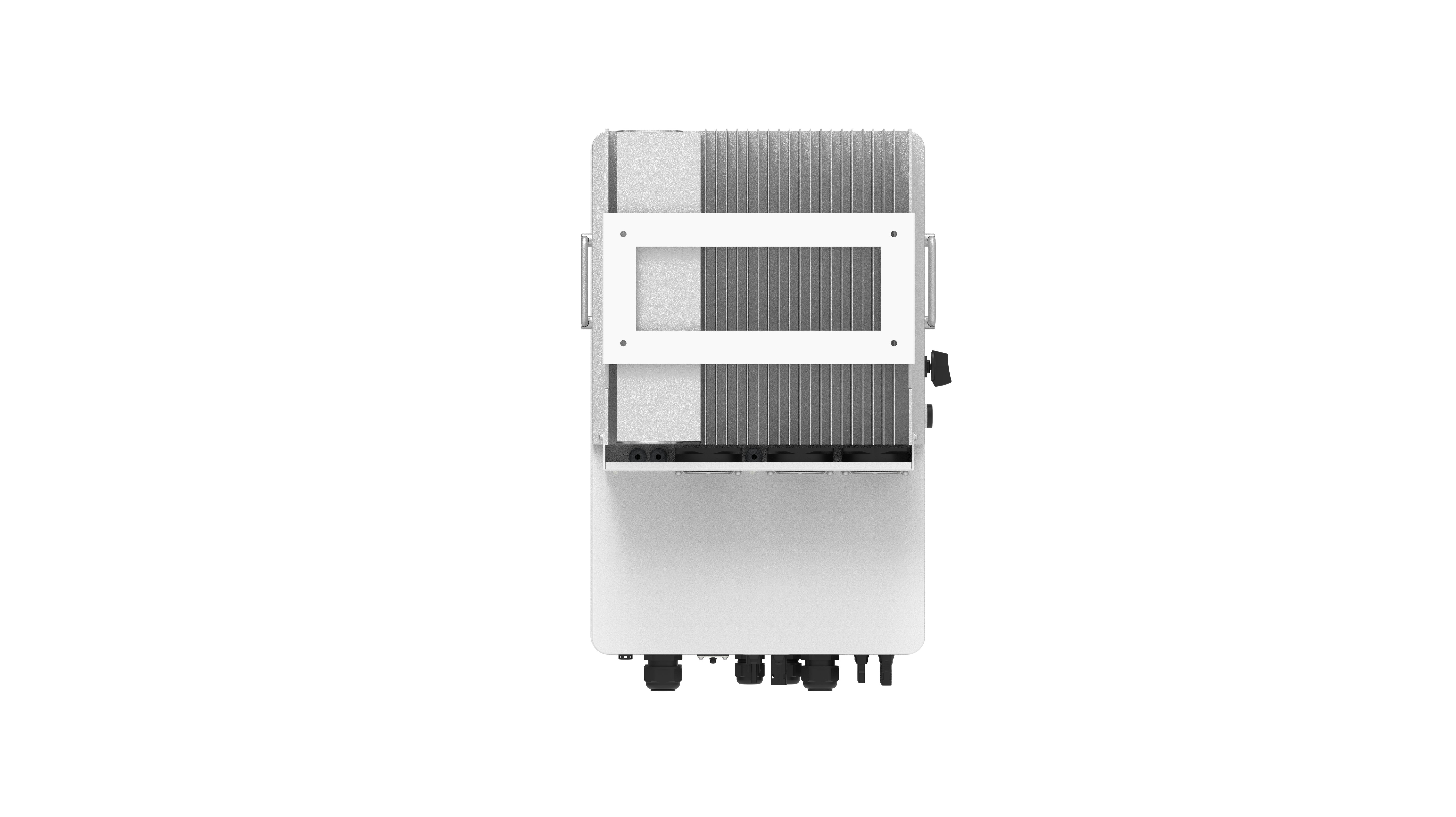

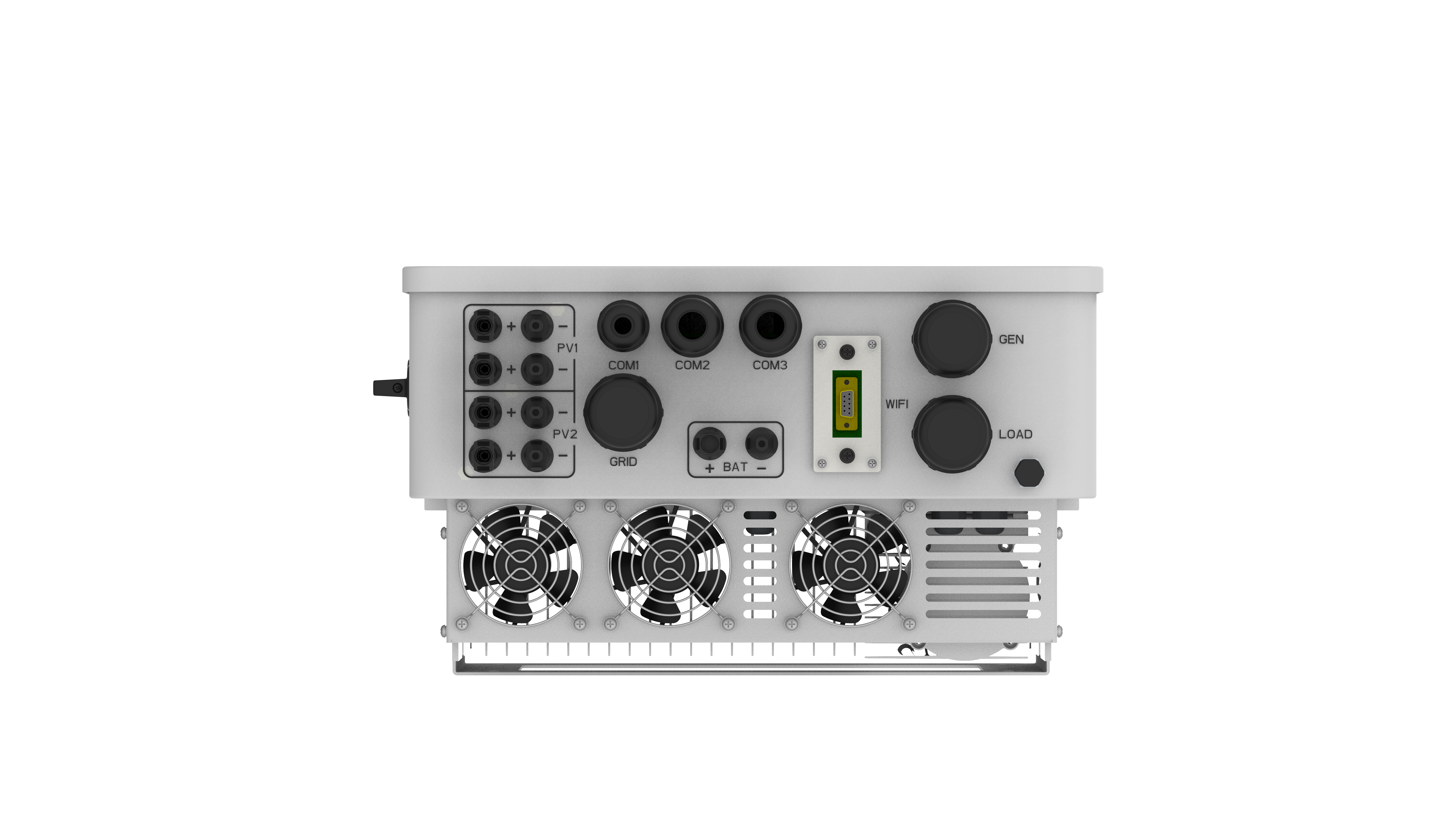

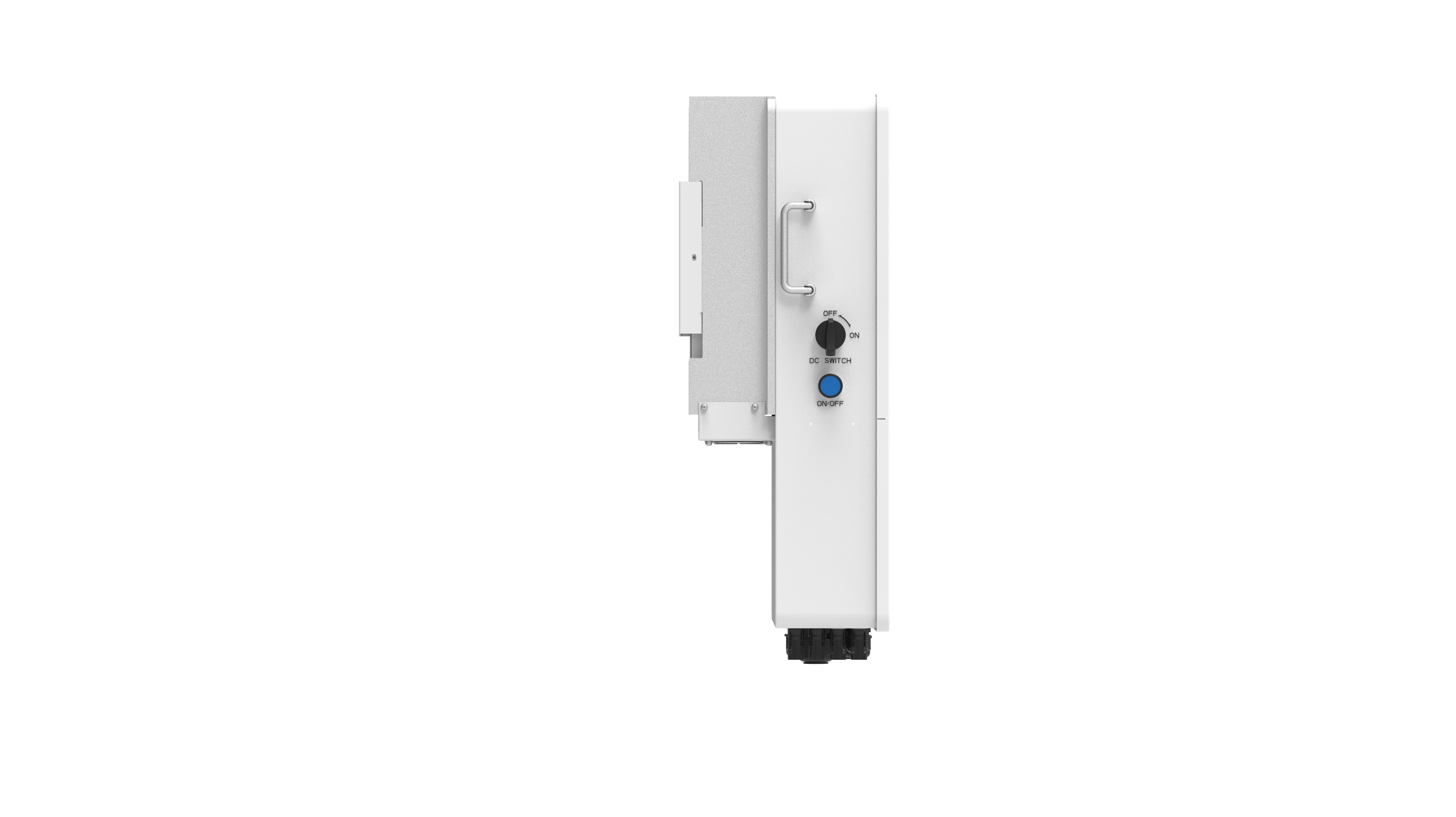

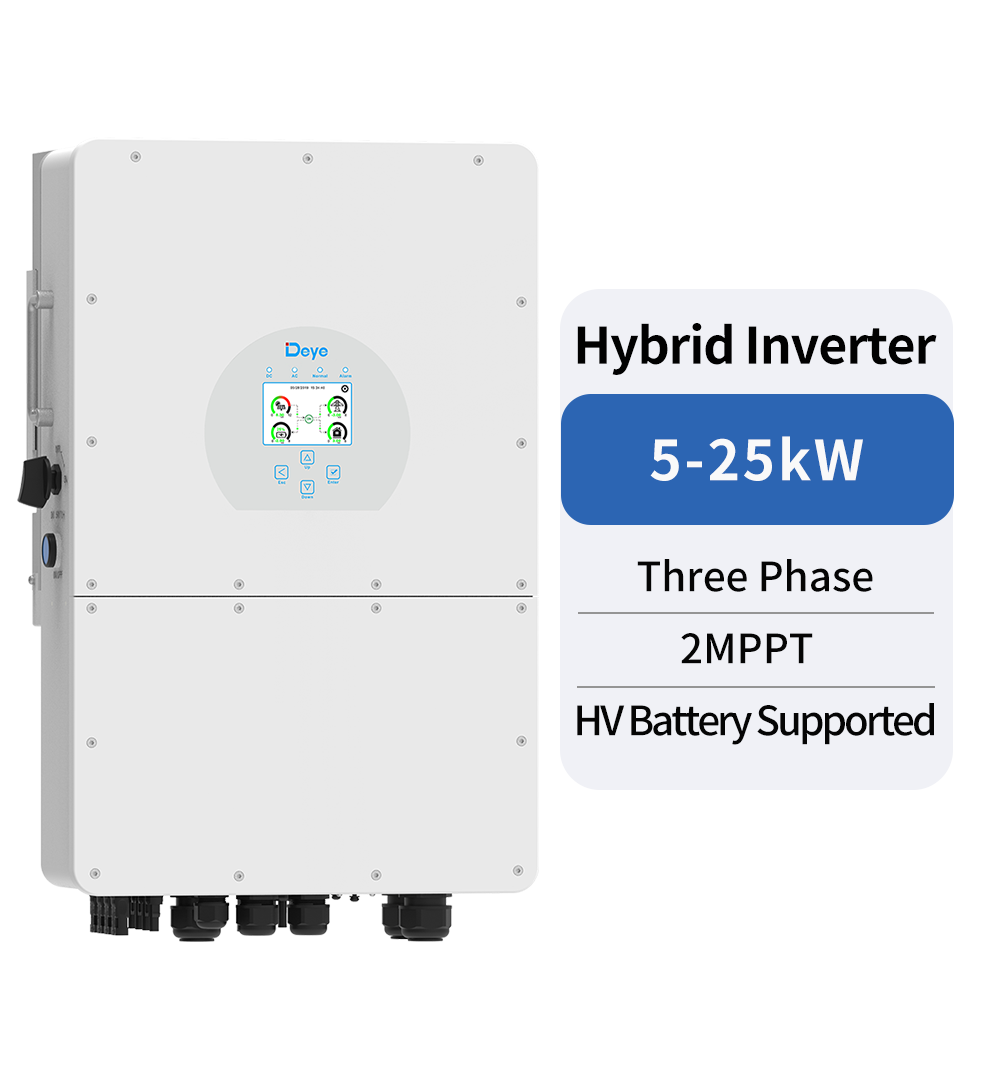

Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2
Three Phase Hybrid Inverter | 5-25kW | 2 MPPT | HV Battery Supported
In stock / on orderPrice on request
- 100% unbalanced output
- AC couple to retrofifit existing solar system
- *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 50A
- High voltage battery, higher effificiency
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 — Three Phase Hybrid Inverter | 5-25kW | 2 MPPT | HV Battery Supported. Original equipment with factory warranty from the official Deye distributor in Belarus. Delivery across Belarus and Russia.
Request Price
Documentation
PDFDatasheetDatasheet · 226 КБDownload ↓PDFManual 1User Manual · 18.9 МБDownload ↓PDFeudeclaration+231011005Document · 480 КБDownload ↓PDFDocumentDocument · 1.2 МБDownload ↓PDFcertificate_australia+asnzs4777.2-6Document · 806 КБDownload ↓PDFcertificate_austria+torerzeuger-2Document · 578 КБDownload ↓PDFcertificate_belgium+c10-11Document · 770 КБDownload ↓PDFcertificate_britain+g98Document · 1.3 МБDownload ↓PDFcertificate_britain+g99Document · 1.3 МБDownload ↓PDFcertificate_czechrepublic+ppdsDocument · 1.6 МБDownload ↓PDFcertificate_emc+en62920-11Document · 257 КБDownload ↓PDFcertificate_emc+eniec61000-12Document · 355 КБDownload ↓PDFcertificate_en62109-1Document · 4.6 МБDownload ↓PDFcertificate_europe+en50549-1Document · 1.2 МБDownload ↓PDFcertificate_germany+vde-ar-n4105-6Document · 2.1 МБDownload ↓PDFcertificate_greeze+en50549-1Document · 1006 КБDownload ↓PDFcertificate_iec60068+iec61683Document · 329 КБDownload ↓PDFcertificate_iec62116+iec61727Document · 327 КБDownload ↓PDFcertificate_italy+cei0-21-1Document · 577 КБDownload ↓PDFcertificate_saudi arabia+saso-5Document · 356 КБDownload ↓PDFcertificate_southafrica+nrs097-9Document · 586 КБDownload ↓PDFcertificate_spain+nts-8Document · 547 КБDownload ↓PDFcertificate_spain+rd647+rd413+rd1699-7Document · 465 КБDownload ↓PDFcertificate_spain+une217001-7Document · 635 КБDownload ↓PDFcertificate_spain+une217002-8Document · 530 КБDownload ↓PDFcertificate_switzerland+naeea-ne7-ch-1Document · 588 КБDownload ↓
Technical Specifications
| Model | SUN-5K -SG01HP3-EU-AM2 | SUN-6K -SG01HP3-EU-AM2 | SUN-8K -SG01HP3-EU-AM2 | SUN-10K -SG01HP3-EU-AM2 | SUN-12K -SG01HP3-EU-AM2 | SUN-15K -SG01HP3-EU-AM2 | SUN-20K -SG01HP3-EU-AM2 | SUN-25K -SG01HP3-EU-AM2 |
| Battery Input Data | ||||||||
| Battery Type | Lithium-ion | |||||||
| Battery Voltage Range(V) | 160-700 | |||||||
| Max.Charging Current(A) | 30 | 30 | 37 | 50 | ||||
| Max.Discharging Current(A) | 30 | 30 | 37 | 50 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | |||||||
| Number of battery input | 1 | |||||||
| PV String Input Data | ||||||||
| Max. PV Access Power (W) | 10000 | 12000 | 16000 | 20000 | 24000 | 30000 | 40000 | 50000 |
| Max. PV Input Power (W) | 8000 | 9600 | 12800 | 16000 | 19200 | 24000 | 32000 | 40000 |
| Max. PV Input Voltage (V) | 1000 | |||||||
| Start-up Voltage（V） | 180 | |||||||
| MPPT Voltage Range（V） | 150-850 | |||||||
| Rated DC Input Voltage(V) | 600 | 700 | ||||||
| Max Input Short-Circuit Current（A） | 30+30 | 39+30 | 39+39 | |||||
| Max Operating PV Input Current（A） | 20+20 | 26+20 | 26+26 | |||||
| No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | 2/2+2 | |||||
| AC Input/Output Data | ||||||||
| Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 |
| Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 | 16500 | 22000 | 27500 |
| Peak Power (off-grid)（W） | 1.5 times of rated power,10s | |||||||
| Rated AC Input/Output Current（A） | 7.6/7.3 | 9.1/8.7 | 12.2/11.6 | 15.2/14.5 | 18.2/17.4 | 22.8/21.8 | 30.4/29 | 37.9/36.3 |
| Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/16 | 20/19.2 | 25/24 | 33.4/31.9 | 41.7/39.9 |
| Max Continuous AC Passthrough (grid to load)（A） | 40 | 80 | ||||||
| Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | |||||||
| Grid Connection Form | 3L+N+PE | |||||||
| Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |||||||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |||||||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |||||||
| DC Injection Current | <0.5%ln | |||||||
| Efficiency | ||||||||
| Max Efficiency | 97.6% | |||||||
| Euro Efficiency | 97.0% | |||||||
| MPPT Efficiency | ＞99% | |||||||
| Equipment Protection | ||||||||
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection | |||||||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | |||||||
| Interface | ||||||||
| Communication Interface | RS485/RS232/CAN | |||||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | |||||||
| LCD/LED Display | LCD | |||||||
| General Data | ||||||||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | |||||||
| Permissible Ambient Humidity | 0-100% | |||||||
| Permissible Altitude | 2000m | |||||||
| Noise | ≤ 55 dB(A) | |||||||
| Ingress Protection(IP) Rating | IP 65 | |||||||
| Inverter Topology | Non-Isolated | |||||||
| Over Voltage Category | OVC II(DC),OVC III(AC) | |||||||
| Cabinet size（W*H*D）[mm] | 408*638*237（Excluding connectors and brackets） | |||||||
| Weight[kg] | 30.5 | |||||||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | |||||||
| Type Of Cooling | natural cooling | Intelligent air cooling | ||||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 | |||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||
FAQ
How much does Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 cost?
The price depends on order volume. Send a request or call +375 (33) 626-70-51 — we will send the current price list within one business day.
Is this original Deye equipment?
Yes, we are the official Deye distributor in Belarus. All equipment is supplied directly from the factory with registered serial numbers and factory warranty.
Do you deliver to Belarus and Russia?
Yes, we deliver across Belarus (1–3 days) and Russia (3–7 days). Pickup from the Minsk warehouse is available.
