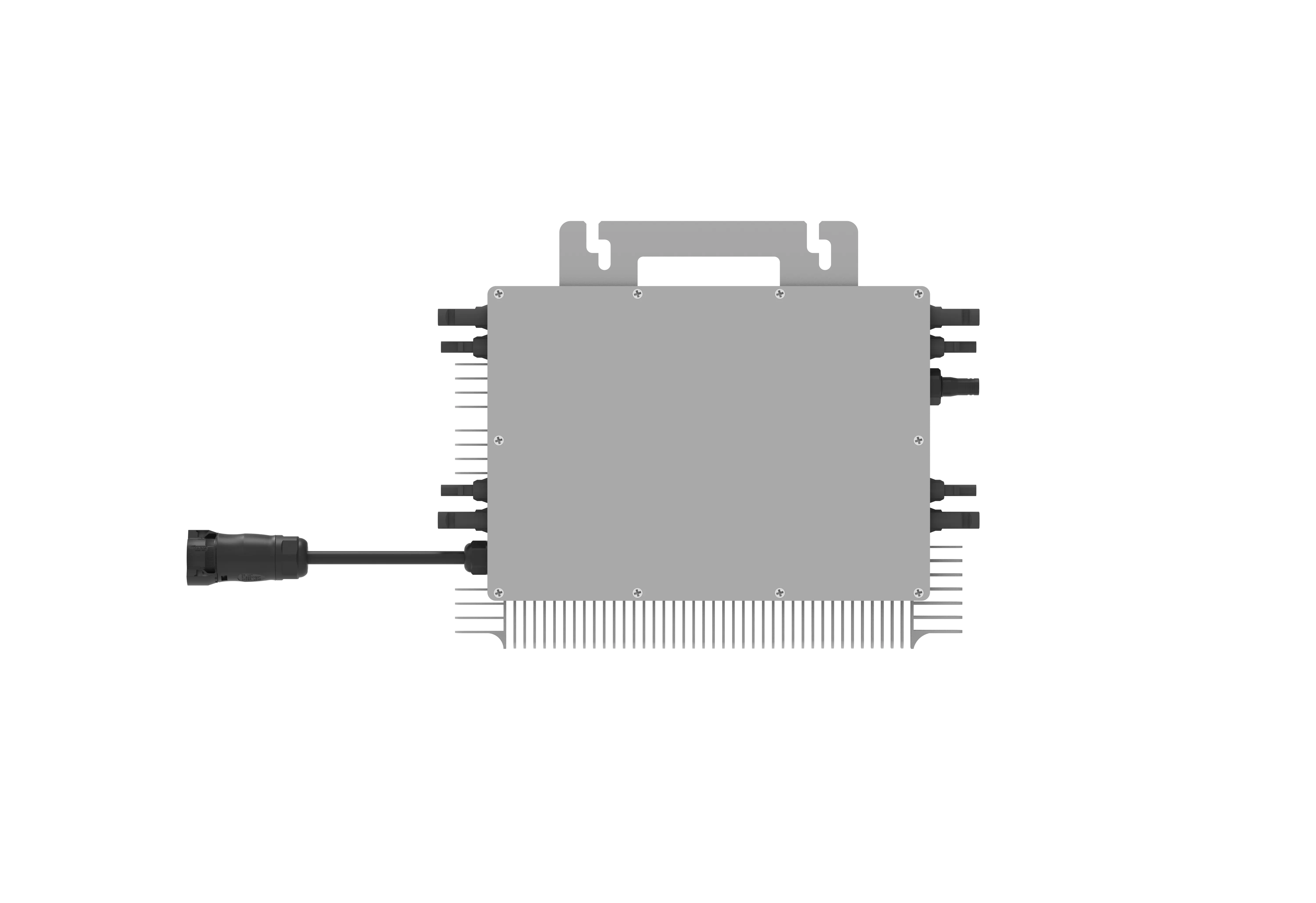

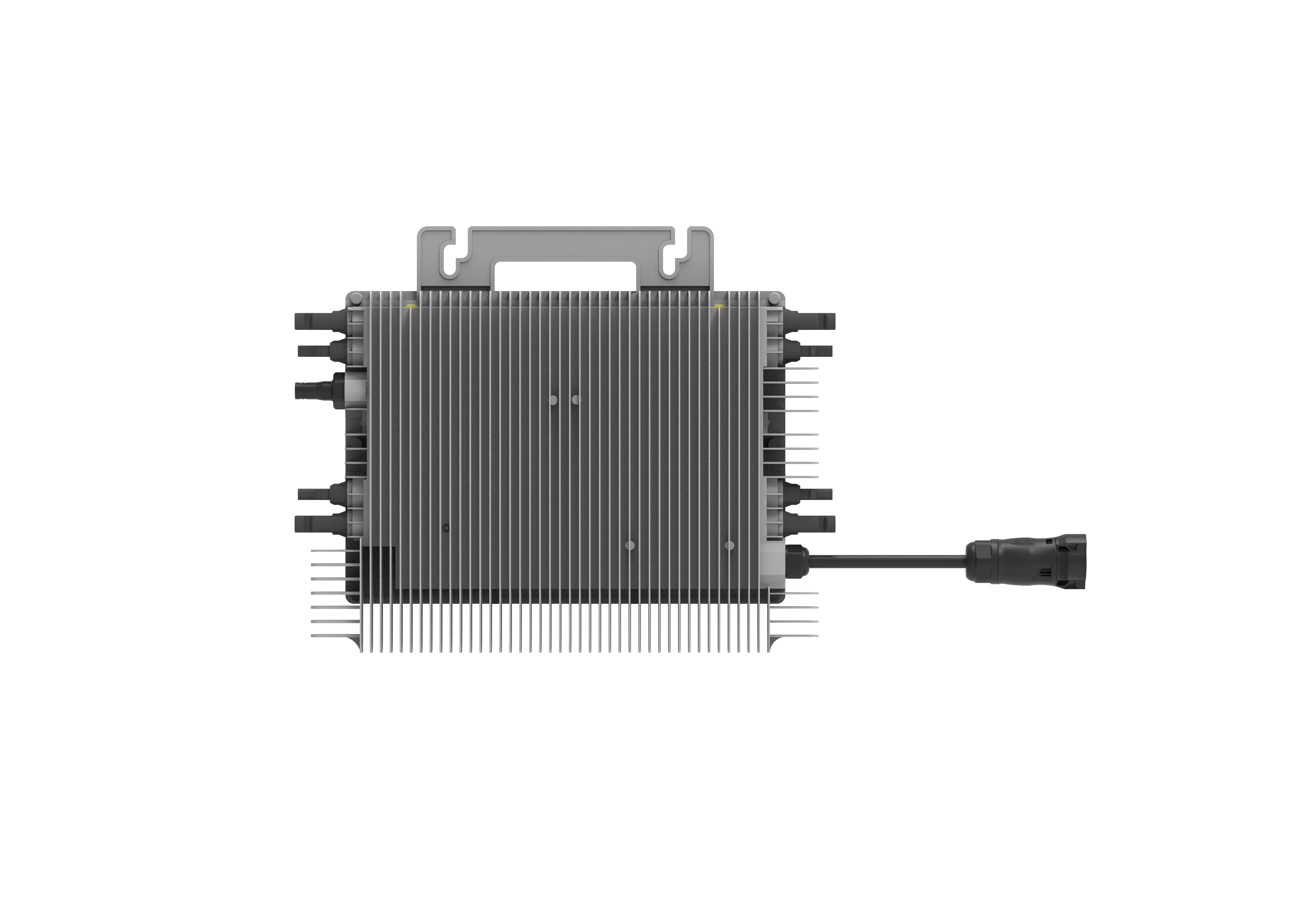

Deye SUN-M220/225G4-EU-Q0

Micro Inverter | 2200-2250W | 4MPPT

In stock / on orderPrice on request

IP67 protection degree, *10 years warranty
Max. DC input current of 18A, adapt to 790W PV module
WIFI communication
Rapid shutdown function
4 MPP trackers, module level monitoring

Deye SUN-M220/225G4-EU-Q0 — Micro Inverter | 2200-2250W | 4MPPT. Original equipment with factory warranty from the official Deye distributor in Belarus. Delivery across Belarus and Russia.

Request Price

Documentation

PDFDatasheetDatasheet · 214 КБDownload ↓PDFManual 1User Manual · 2.4 МБDownload ↓

Technical Specifications

Model	SUN-M220G4-EU-Q0	SUN-M225G4-EU-Q0
PV String Input Data
Max. PV Input Power(W)	210-770(4 Piece)	210-790(4 Piece)
Max. PV Input Voltage(V)	60
Start-up Voltage(V)	20
MPPT voltage range(V)	25-55
Rated PV Input voltage(V)	42.5
Max. Input Short-Circuit Current (A)	27+27+27+27
Max. Operating PV Input Current(A)	18+18+18+18
No. of MPP Trackers/No. of String per MPP Tracker	4/1
AC Output Side
Rated AC Output Active Power(W)	2200	2250
Max.AC Output Apparent Power(VA)	2200	2250
Rated AC output current (A)	10/9.6	10.3/9.8
Max.AC Output Current(A)	10/9.6	10.3/9.8
Rated output voltage/range (V)	220/230 0.85Un-1.1Un
Grid Connection Form	L/N/PE
Rated Output Grid Frequency/range(Hz)	50/45-55, 60/55-65
Max. unit per branch	3	3
Power Factor Adjustment Range	0.9 leading to 0.9 lagging
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5%ln
Efficiency
Max. Efficiency	96.5%
Euro Efficiency	96.0%
MPPT Efficiency	>99%
Equipment Protection
DC Polarity Reverse Connection Protection	YES
AC Output Overcurrent Protection	YES
AC Output Overvoltage Protection	YES
AC Output Short Circuit Protection	YES
Thermal Protection	YES
Insulation Impedance Detection	YES
Anti-islanding Protection	YES
Surge Protection Level	TYPE II(AC)
Interface
Communication Interface	WiFi
General Data
Operating Temperature Range (°C)	-40 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude (m)	2000m
Noise (dB)	≤ 25
Ingress Protection(IP) Rating	IP 67
Inverter Topology	Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet Size（WHDmm)	358×255.5×36.5 (Excluding Connectors and Brackets)
Weight (kg)	5.2
Warranty	10 Years
Type Of Cooling	natural cooling
Grid Regulation	IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,G98,VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
